TTP229 Capacitive Touch Sensor

The ttp229 component allows you to use your TTP229 datasheet Capacitive Touch Sensor with ESPHome.

There are two types of this sensor:

  • ttp229_lsf: The I²C version of the sensor, uses SDA+SCL pins.
  • ttp229_bsf: The pin-based version of the sensor, uses SDO+SCL pins.

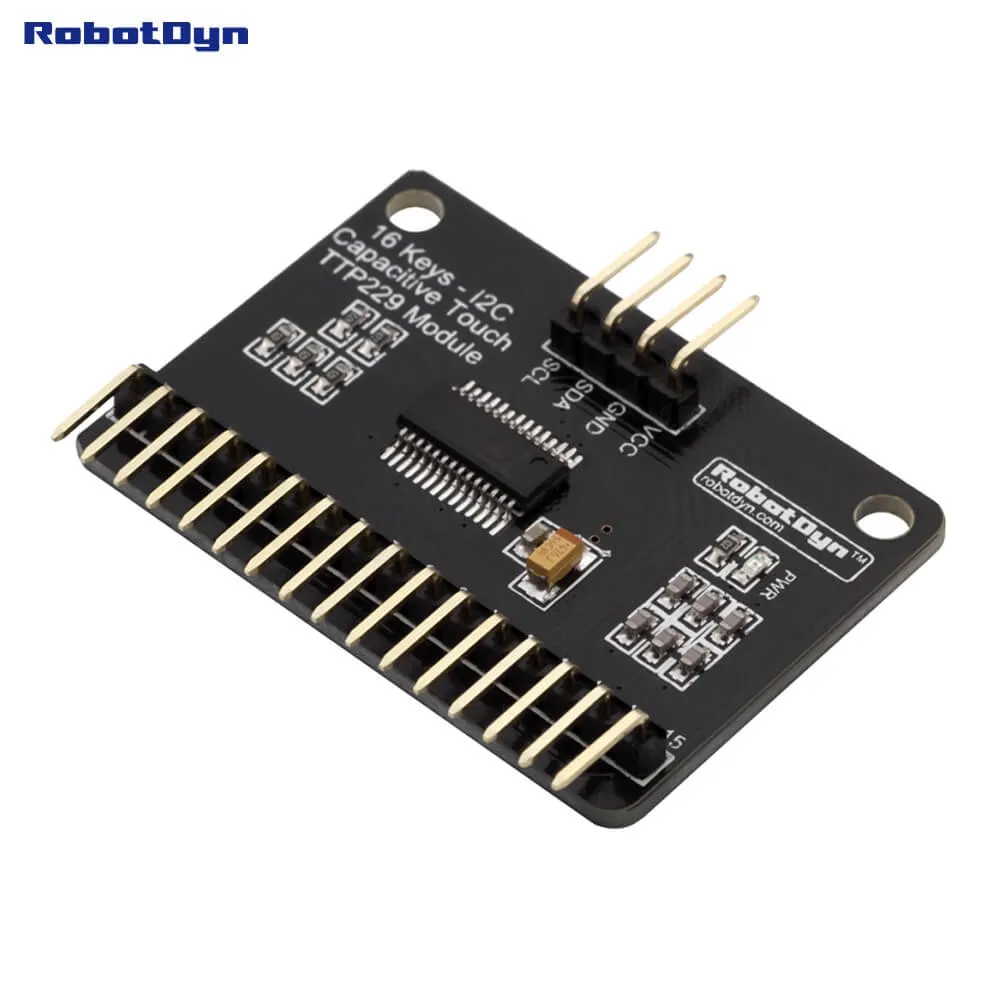

TTP229 Capacitive Touch Sensor. Image by RobotDyn.

ttp229_lsf Component

Section titled “ttp229_lsf Component”
# Example configuration entry
ttp229_lsf:


binary_sensor:
  - platform: ttp229_lsf
    name: TTP229 Channel 0
    channel: 0

Configuration variables

Section titled “Configuration variables”

The configuration is made up of two parts: The central component, and individual Binary sensors per channel.

  • id (Optional, ID): Manually set the ID of this sensor.

ttp229_lsf Binary Sensor

Section titled “ttp229_lsf Binary Sensor”

Configuration variables:

  • channel (Required, int): The channel number at the TTP229 the touchkey is connected to.
  • All other options from Binary Sensor.

ttp229_bsf Component

Section titled “ttp229_bsf Component”
# Example configuration entry
ttp229_bsf:
  sdo_pin: D0
  scl_pin: D1


binary_sensor:
  - platform: ttp229_bsf
    name: TTP229 Channel 0
    channel: 0

Configuration variables

Section titled “Configuration variables”

The configuration is made up of two parts: The central component, and individual Binary sensors per channel.

Base Configuration:

  • sdo_pin (Required, Pin Schema): The pin the SDO pin is connected to.

  • scl_pin (Required, Pin Schema): The pin the SCL pin is connected to.

  • id (Optional, ID): Manually set the ID of this component.

ttp229_bsf Binary Sensor

Section titled “ttp229_bsf Binary Sensor”

Configuration variables:

  • channel (Required, int): The channel number at the TTP229 the touchkey is connected to.
  • All other options from Binary Sensor.
