SSD1351 OLED Display
ssd1351_spi Component

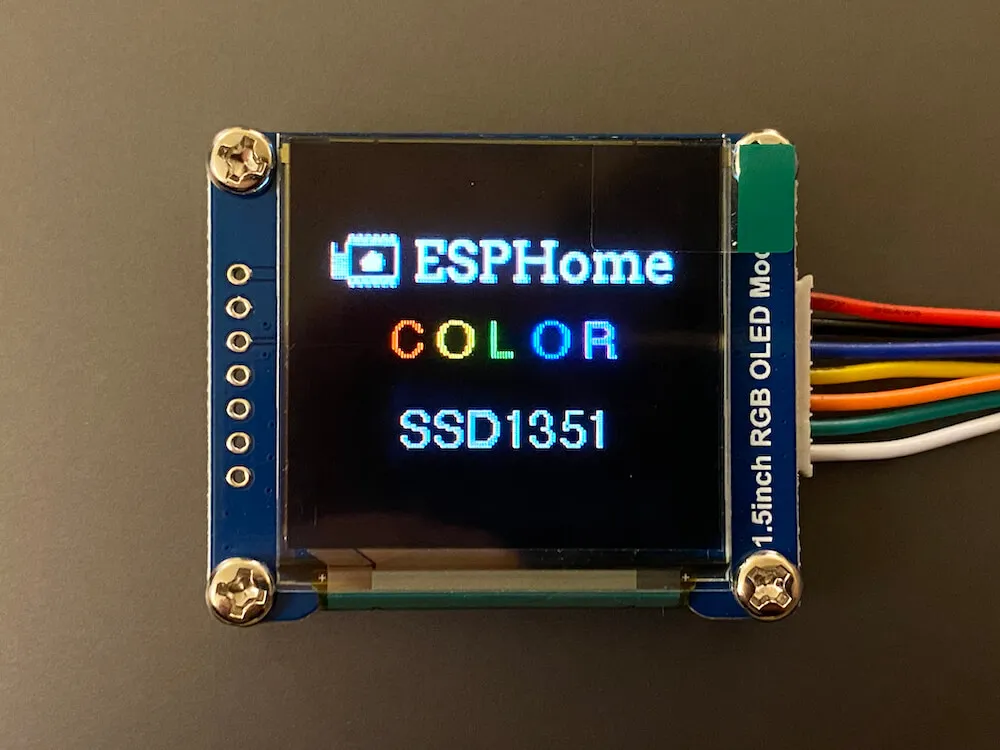

Section titled “ssd1351_spi Component”The ssd1351_spi display platform allows you to use
SSD1351 (datasheet,
Adafruit 128x128,
Adafruit 128x96,
Waveshare 128x128)
displays with ESPHome. This component is for displays that are connected via the 4-Wire SPI bus.
Connect CLK, DIN, CS, DC, and RST to pins on your ESP. For power, the Adafruit modules have two pins; connect
3.3 volts to their 3v or connect 5 volts to their + pin. The Waveshare modules have only a Vcc pin
which should be connected to 3.3 volts only. Connect the GND or G pin to GND.
# Example configuration entryspi: clk_pin: D5 mosi_pin: D7
display: - platform: ssd1351_spi model: "SSD1351 128x128" reset_pin: D0 cs_pin: D8 dc_pin: D1 lambda: |- it.print(0, 0, id(font), "Hello World!");Configuration variables
Section titled “Configuration variables”-
model (Required): The model of the display. Options are:
SSD1351 128x128- SSD1351 with 128 columns and 128 rowsSSD1351 128x96- SSD1351 with 128 columns and 96 rows
-
dc_pin (Required, Pin Schema): The DC pin.
-
cs_pin (Required, Pin Schema): The pin on the ESP that the CS line is connected to.
-
reset_pin (Optional, Pin Schema): The RESET pin.
-
lambda (Optional, lambda): The lambda to use for rendering the content on the display. See Display Rendering Engine for more information.
-
update_interval (Optional, Time): The interval to re-draw the screen. Defaults to
5s. -
pages (Optional, list): Show pages instead of a single lambda. See Display Pages.
-
id (Optional, ID): Manually specify the ID used for code generation.
Configuration examples
Section titled “Configuration examples”Add a color: section to your YAML configuration; please see color for more detail on this configuration section.
color: - id: my_red red: 100% green: 3% blue: 5%
...
display: ... lambda: |- it.rectangle(0, 0, it.get_width(), it.get_height(), id(my_red));To bring in color images:
image: - file: "image.jpg" id: my_image resize: 120x120 type: RGB24
...
display: ... lambda: |- it.image(0, 0, id(my_image));
