BME680 Temperature+Pressure+Humidity+Gas Sensor

The bme680 sensor platform allows you to use your BME680 (datasheet, Adafruit) temperature, pressure and humidity sensors with ESPHome. The I²C is required to be set up in your configuration for this sensor to work.

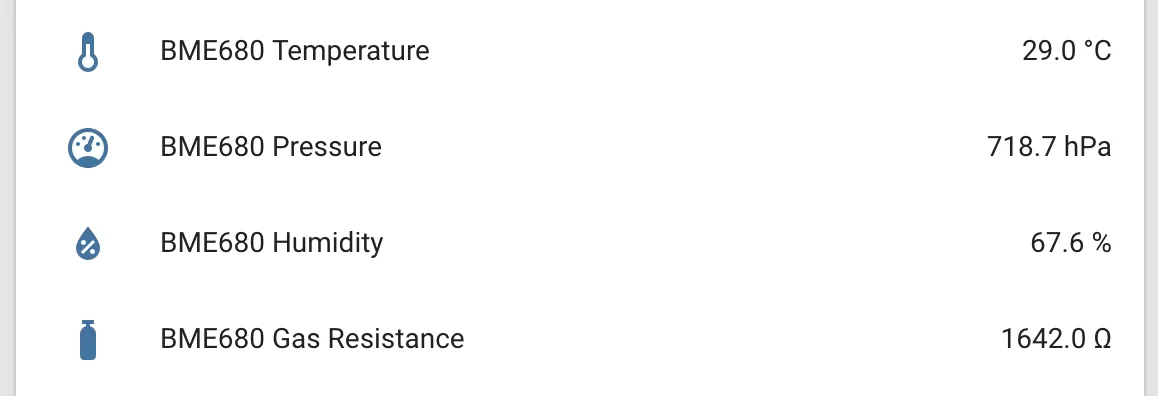

BME680 Temperature, Pressure & Humidity Sensor.

# Example configuration entry
sensor:
  - platform: bme680
    temperature:
      name: "BME680 Temperature"
      oversampling: 16x
    pressure:
      name: "BME680 Pressure"
    humidity:
      name: "BME680 Humidity"
    gas_resistance:
      name: "BME680 Gas Resistance"
    address: 0x77
    update_interval: 60s

Configuration variables

temperature (Optional): The information for the temperature sensor.
- oversampling (Optional): The oversampling parameter for the temperature sensor. See Oversampling Options.
- All other options from Sensor.
pressure (Optional): The information for the pressure sensor.
- oversampling (Optional): The oversampling parameter for the temperature sensor. See Oversampling Options.
- All other options from Sensor.
humidity (Optional): The information for the humidity sensor.
- oversampling (Optional): The oversampling parameter for the temperature sensor. See Oversampling Options.
- All other options from Sensor.
gas_resistance (Optional): The information for the gas sensor.
- All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x76. Another address can be 0x77.
iir_filter (Optional): Set up an Infinite Impulse Response filter to increase accuracy. One of OFF, 1x, 3x, 7x, 15x, 31x, 63x and 127x. Defaults to OFF.
heater (Optional): The settings for the internal heater for the gas sensor. Set this to disable the internal heater.
- temperature (Optional, int): The target temperature of the heater between 200 and 400 °C. Defaults to 320.
- duration (Optional, Time): The duration the heater should be active. Maximum value is 4032ms. Defaults to 150ms.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

Oversampling Options

By default, the BME680 sensor measures each value 16 times when requesting a new value. You can, however, configure this amount. Possible oversampling values:

NONE (value is skipped)
1x
2x
4x
8x
16x (default)

Advanced Configuration

Add indoor air quality (IAQ) calculation and IAQ label, based on the values in the BME680 BSEC component index.

# Example configuration entry
sensor:
  - platform: bme680
    temperature:
      name: "BME680 Temperature"
      oversampling: 16x
    pressure:
      name: "BME680 Pressure"
    humidity:
      id: "humidity"
      name: "BME680 Humidity"
    gas_resistance:
      id: "gas_resistance"
      name: "BME680 Gas Resistance"
    address: 0x77
    update_interval: 60s
  - platform: template
    name: "BME680 Indoor Air Quality"
    id: iaq
    icon: "mdi:gauge"
    # calculation: comp_gas = log(R_gas[ohm]) + 0.04 log(Ohm)/%rh * hum[%rh]
    lambda: |-
      return log(id(gas_resistance).state) + 0.04 *  id(humidity).state;
    state_class: "measurement"
text_sensor:
  - platform: template
    name: "BME680 IAQ Classification"
    icon: "mdi:checkbox-marked-circle-outline"
    lambda: |-
      if (int(id(iaq).state) <= 50) {
        return {"Excellent"};
      }
      else if (int(id(iaq).state) <= 100) {
        return {"Good"};
      }
      else if (int(id(iaq).state) <= 150) {
        return {"Lightly polluted"};
      }
      else if (int(id(iaq).state) <= 200) {
        return {"Moderately polluted"};
      }
      else if (int(id(iaq).state) <= 250) {
        return {"Heavily polluted"};
      }
      else if (int(id(iaq).state) <= 350) {
        return {"Severely polluted"};
      }
      else if (int(id(iaq).state) <= 500) {
        return {"Extremely polluted"};
      }
      else {
        return {"unknown"};
      }
