DPS310 Atmospheric Pressure Sensor
The dps310 sensor platform allows you to use both the temperature and pressure sensors on

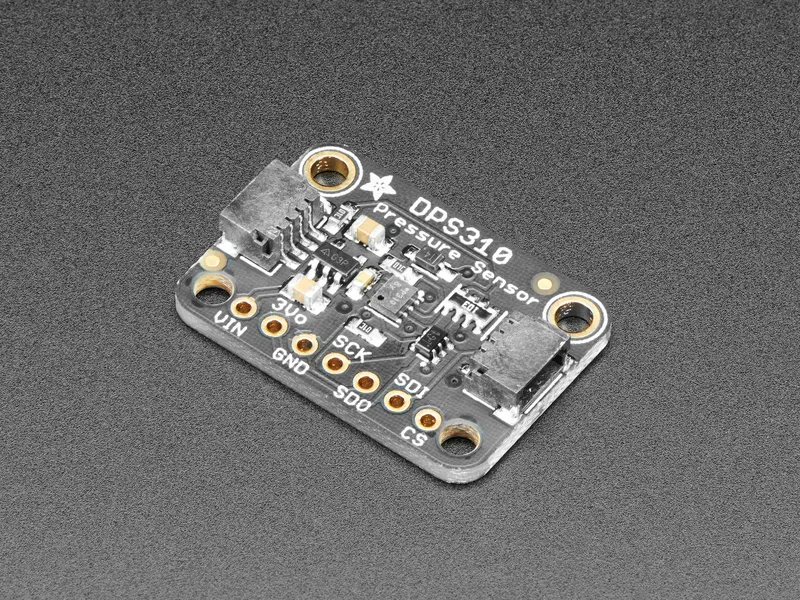

your DPS310 atmospheric pressure sensor (Adafruit)
with ESPHome. The I²C component is required to be set up in your configuration.
# Example configuration entrysensor: - platform: dps310 temperature: name: "Outside Temperature" pressure: name: "Outside Pressure" address: 0x77 update_interval: 60sConfiguration variables
Section titled “Configuration variables”-
pressure (Optional): The information for the pressure sensor.
- All options from Sensor.
-
temperature (Optional): The information for the temperature. sensor
- All options from Sensor.
-
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x77. -
update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
