INA260 DC Current and Power sensor

The ina260 sensor platform allows you to use your INA260 DC Current and Power Sensor (datasheet, Adafruit) sensors with ESPHome. The I²C Bus is required to be set up in your configuration for this sensor to work.

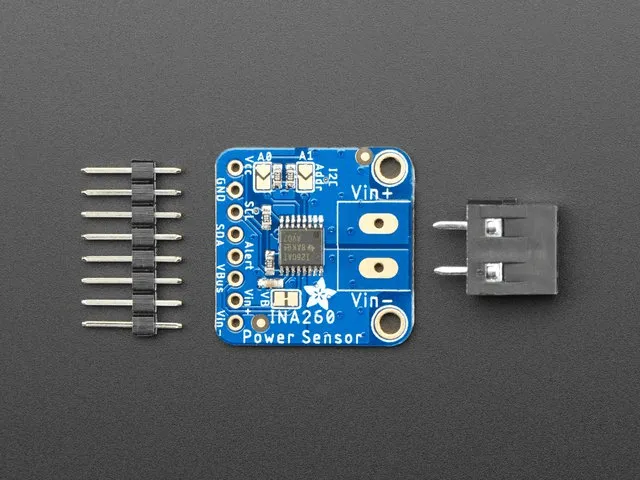

INA260 DC Current and Power Sensor.
# Example configuration entry
sensor:
  - platform: ina260
    address: 0x40
    current:
      name: "INA260 Current"
    power:
      name: "INA260 Power"
    bus_voltage:
      name: "INA260 Bus Voltage"
    update_interval: 60s

Configuration variables

Section titled “Configuration variables”

  • address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x40.

  • current (Optional): Use the current value of the sensor in amperes. All options from Sensor.

  • power (Optional): Use the power value of the sensor in watts. All options from Sensor.

  • bus_voltage (Optional): Use the bus voltage (voltage of the high side contact) value of the sensor in V. All options from Sensor.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
