MS8607 Temperature+Pressure+Humidity Sensor

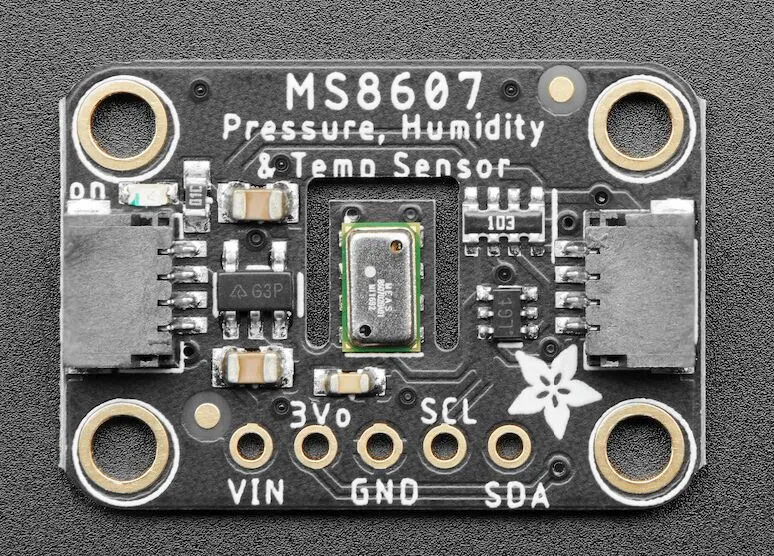

The ms8607 sensor platform allows you to use your MS8607 (datasheet, Adafruit) temperature,
pressure and humidity sensors with ESPHome. An I²C Bus is required to be set up in
your configuration for this sensor to work.
# Example configuration entrysensor: - platform: ms8607 temperature: name: Temperature humidity: name: Humidity pressure: name: PressureConfiguration variables
Section titled “Configuration variables”-
temperature (Optional): The information for the temperature sensor. All options from Sensor.
-
pressure (Optional): The information for the pressure sensor. All options from Sensor.
-
humidity (Optional): The information for the humidity sensor.
-
address (Optional, int): Manually specify the I²C address of the humidity sensor. Defaults to
0x40. -
i2c_id (Optional, ID): Manually specify the ID of the I²C Component if your configuration uses multiple I²C buses. This should match the
i2c_iddocumented below. -
All other options from Sensor.
-
-
address (Optional, int): Manually specify the I²C address of the temperature & pressure sensor. Defaults to
0x76. -
i2c_id (Optional, ID): Manually specify the ID of the I²C Component if your configuration uses multiple I²C buses. This should match the
i2c_idinside ofhumidity, documented above. -
update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
I²C Addresses
Section titled “I²C Addresses”The MS8607 digital sensor has two I²C addresses: one for temperature & pressure (0x76 ), and the other for
humidity readings (0x40 ). They are attached to the same SCL /SDA pins on the package, so if you need to
customize the i2c_id, you need to specify it at the top-level for temperature & humidity, and use the same value
inside the humidity configuration block.
